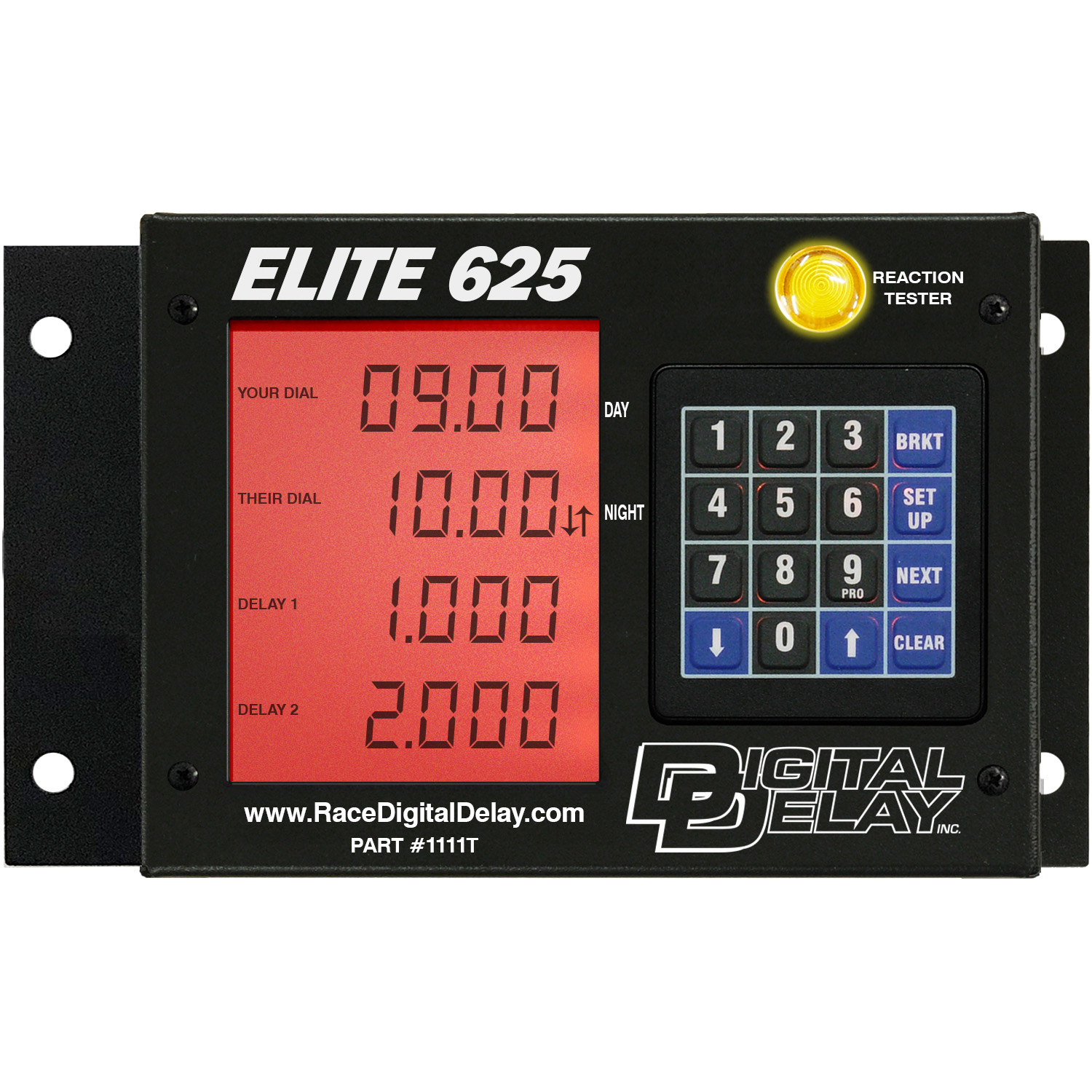

Elite 625
Elite 625 - Image 2

Elite 625

$749.95

Looking for all of the great features of the Mega 475 but want a remote relay board, then the Elite 625 is perfect for you. The Elite 625  has the ability to control any of the Digital Delay V2 Dial Display boards. The ability to set your dial in at one place is a nice feature but the Mega 475 doesn’t stop there. The built in reaction time tester ensures you’re ready to race and to ensure everything is functioning properly. You can also easily control your shift point between choosing an rpm or choosing a time, and it can all be done right there in the cockpit. Combine that with all the other features like Replay Tach, Starting Line Enhancer, Throttle Stop controls and so much more.

Category: SKU: DD-626

Description

The Elite 625 has the ability to directly control any of our V2 Dial Display Boards. Every Time you change ‘Your Dial’ on the Elite 625, your Dial Display board is automatically updated, eliminating the need to enter Your Dial a second time on another unit.

With our new ‘Set & Go’ push-button mode (which is similar to Z-Force*) the press of a button (SET) sets the Transbrake. Then the press of a separate second button (GO) starts the delay timing.

Additional options include the ability to Tap Up and Down on the same pass. The setting of the S.L.E. by the Transbrake pushbutton can also be turned off. The Replay Tach can now record up to nine passes and replay them on the screen. Both Bracket and Pro Mode both have three 4-Stage Timers and can shift up to 5 times by RPM and/or Time.

Features

  • Crossover Delay Box
  • CrossTalk Compatible
  • Full Bracket and Pro Modes
  • Controls any V2 Mega Dial Display Board
  • Day and Night intensity settings for the Dial Board
  • 5 Push-button modes
  • Set and Go push-button mode (similar to Z-Force*)
  • 1 or 2 hits at the tree with built in ‘How Late’ feature
  • Tap Up or Tap Down to .001 seconds
  • Multi-tap feature
  • Push-button Interrupt safety feature
  • 7 independent outputs
  • Three seperate four-stage Timers (programmable to thousandths)
  • Dedicated (SLE) Starting Line Enhancer output
  • Dedicated Line Lock output
  • Adjustable Burn-out Timer
  • Dedicated high current Shift output
  • Shift up to 5 times by RPM and/or Time
  • Built in digital tach with peek RPM and Replay Feature
  • 9-pass memory Replay Tach
  • Selectable 4, 6, and 8 engine cylinder setting
  • Compatible with most ignitions
  • Driver Reaction Tester with LED
  • Large 4 line LCD (see Dial-ins and Delay at the same time)
  • Back lit keypad and Screen
  • Glove Friendly

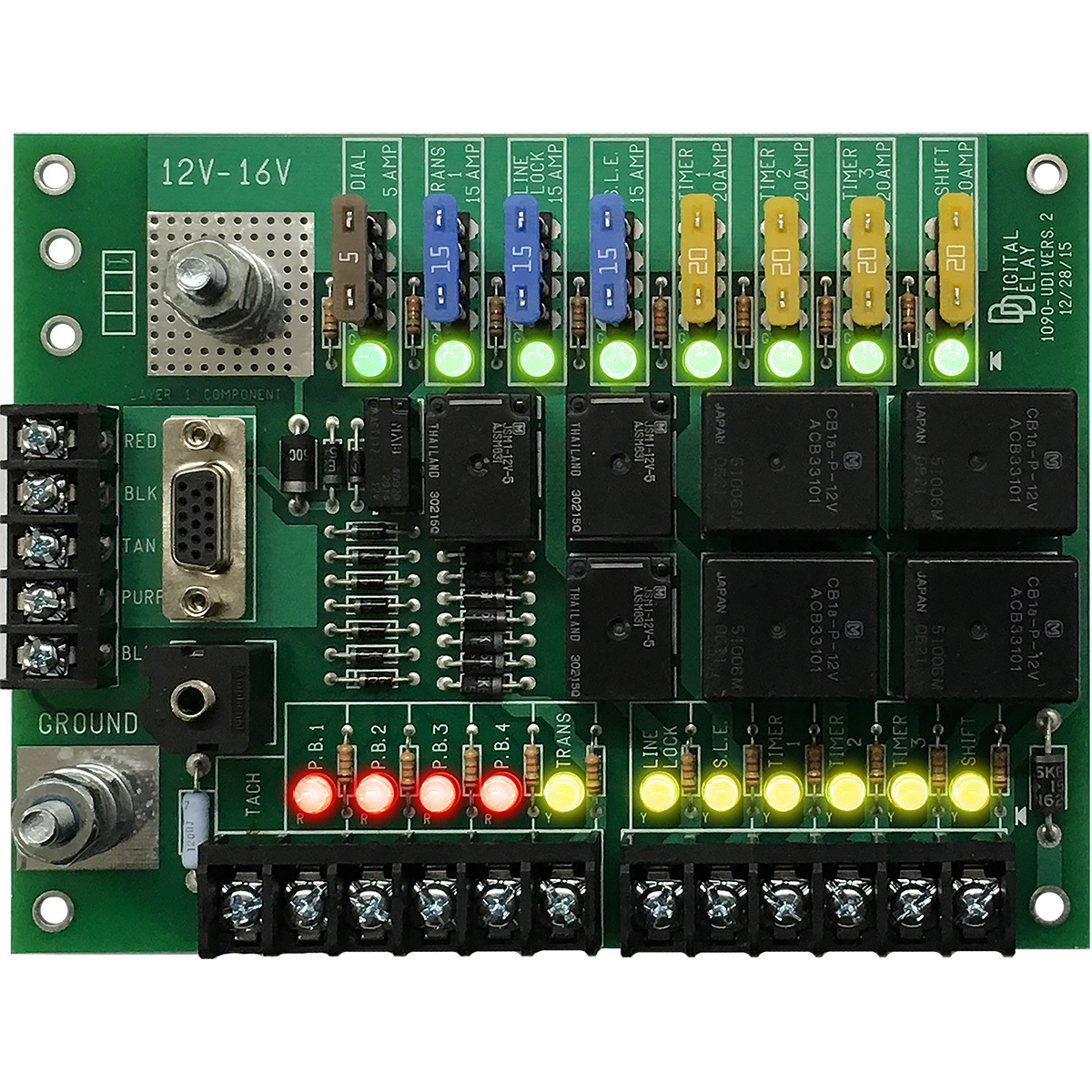

  • Separate remote mount I/O board to simplify wiring
  • Full status LEDs on remote I/O board

Specifications

  • Same dash cutout as 400, 450, 500, or 600
  • Face Size: 611⁄16” x 5″ x 1¾”
  • Overall Size: 811⁄16” x 5″ x 1¾”
  • 12 and 16 Volt compatible
  • 4 — Push-button inputs
  • 3 — 12 Amp outputs (Transbrake, SLE and Line Lock)
  • 4 — 40 Amp high-current outputs (Timer 1, 2, 3, and Shift)
  • Built-in controller for V2 Dial Display boards
