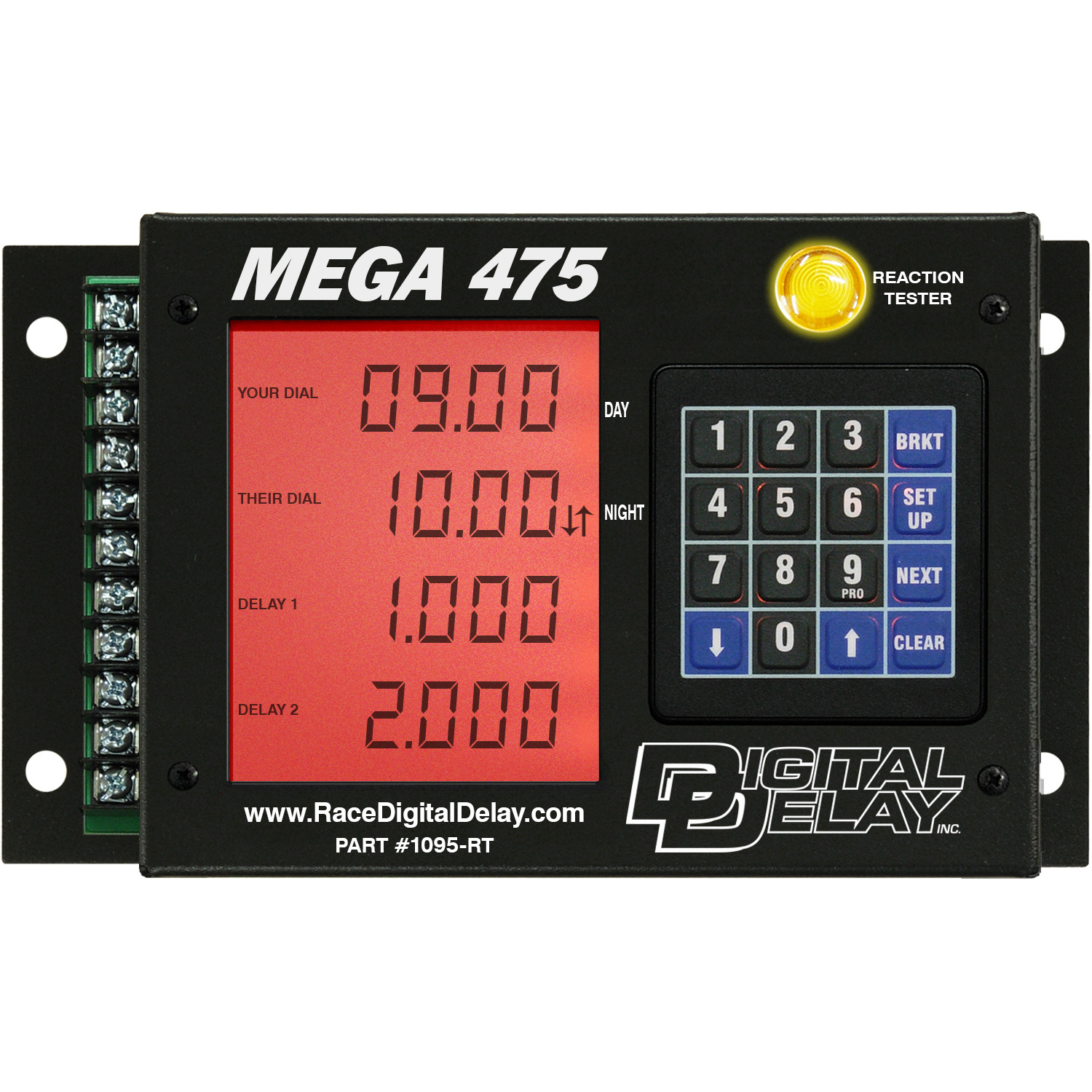

Digital Delay Mega 475 Delay Box

Mega 475

$609.95

The Digital Delay Mega 475 is the perfect delay box for every bracket racer. The 475 is very similar to the 450 model but also has the ability to control any of the Digital Delay V2 Dial Display boards. The ability to set your dial in at one place is a nice feature but the Mega 475 doesn’t stop there. The built in reaction time tester ensures you’re ready to race and to ensure everything is functioning properly. You can also easily control your shift point between choosing an rpm or choosing a time, and it can all be done right there in the cockpit. Combine that with all the other features like Replay Tach, Starting Line Enhancer, Throttle Stop controls and so much more.

Category: SKU: DD-475

Description

We started with the popular Mega 450 and improved on it by adding a built-in Mega Dial controller to directly control any of our V2 Dial Display boards.

Additional options include the ability to Tap Up and Down on the same pass. The setting of the S.L.E. by the Transbrake pushbutton can also be turned off. The Replay Tach can now record up to nine passes and replay them on the screen, and Bracket and Pro Mode both have two 4-Stage Timers and can shift up to 5 times by RPM or Time.

Features

  • Crossover Delay Box
  • CrossTalk Compatible
  • Controls any V2 Mega Dial Display Board
  • Day and Night intensity settings for the Dial Board
  • 5 push-button modes
  • Set and Go push-button mode (similar to Z-Force*)
  • 1 or 2 hits at the tree with built in ‘How Late’ feature
  • Tap Up or Tap Down to .001 seconds
  • Push-button Interrupt safety feature
  • Two separate 4 Stage Timers (programmable to thousandths)
  • Starting Line Enhancer (SLE)
  • Shift up to 5 times by RPM and/or Time
  • Built in digital tach with peek RPM and Replay Feature
  • Selectable Function Output (SFO)
    • Line Locks for anti-roll staging
    • Starting Line Enhancer
    • Second 4 Stage Timer
    • Spare Transbrake
  • Driver Reaction Tester
  • The large back lit display, displays 4 lines of data at once
  • Back lit keypad
  • Glove Friendly
  • Compatible with 4, 6, and 8 cylinder engines
  • Compatible with most ignitions

Specifications

  • Face Size: 611⁄16” x 5″ x 1¾”
  • Overall Size: 811⁄16” x 5″ x 1¾”
  • 12 and 16 Volt compatible
  • 4 — Push-button inputs
  • 4 — 12 Amp outputs (Transbrake, SFO, Throttle Stop and Shift)
  • Built-in controller for V2 Dial Display boards
